CRP-RH14-10-W
Describe
NDUSTRIAL ROBOTWELDING APPLICATION
FUNCTIONAL FEATURES
  • The arm span is 1.4 meters. The design is highly compact and can be flexibly in stalledon the ground or upside down.

  • With large working space, fast running speed and high repeated positioning accuracy.it is suitable for wide range of welding applications.

  • The safety emergency stop board independent of the control systemis equipped with.and the safety relay circuit is adopted to provide double-circuit emergency stop toensure the reliability of emergency stop.

  • The robot body adopts highly flexible special cable.Built-in three phase filter can effectively improve the performance of EMC and EMl.

  • The robot body is with dual-circuit gas pipe to meet the welding demand.

  • The inner diameter of 6-axis middle hole is 44mm,it can meet theinstallation.

  • Bulit-in high flexible welding cable.

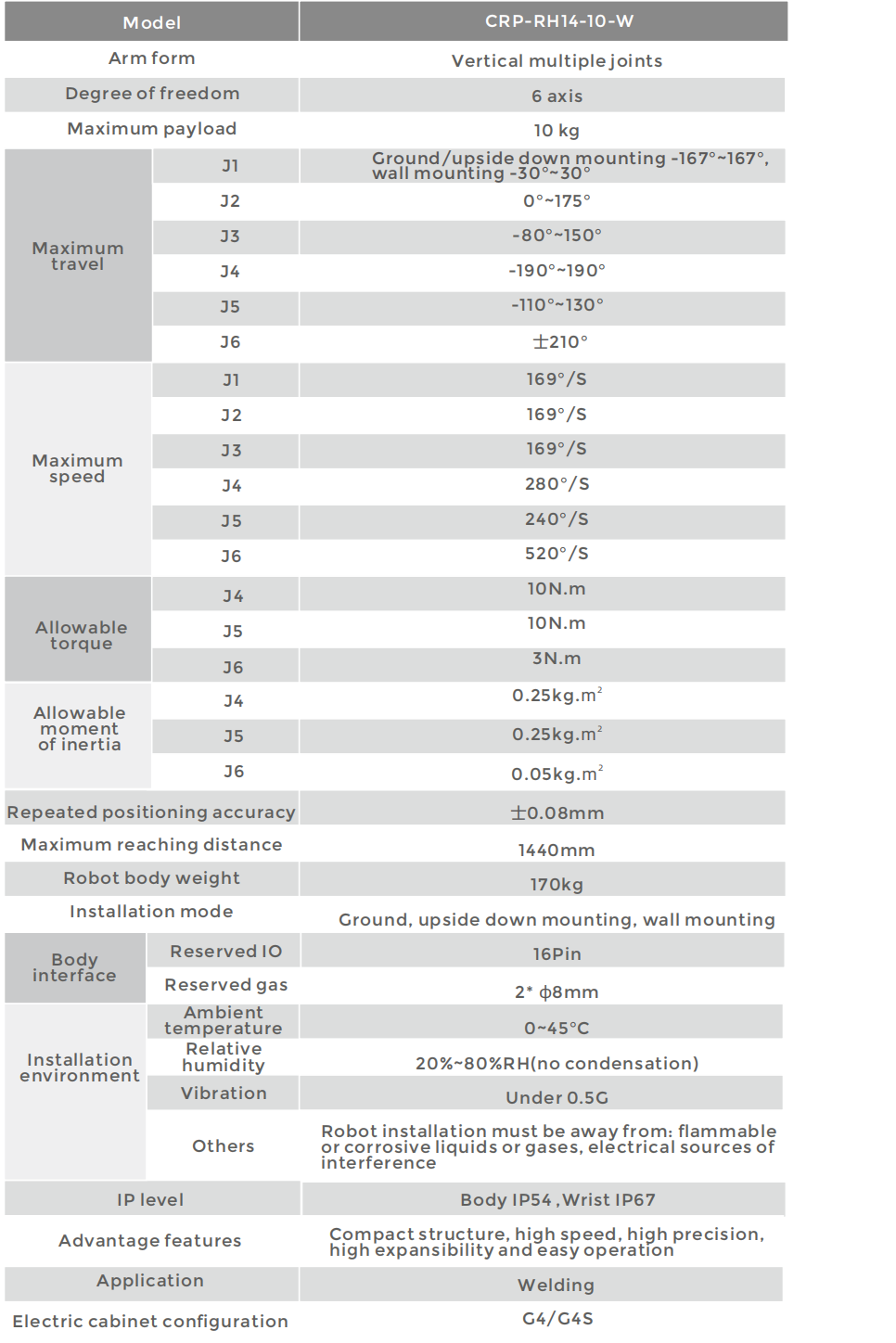

ROBOT BODY TECHNICAL PARAMETERS

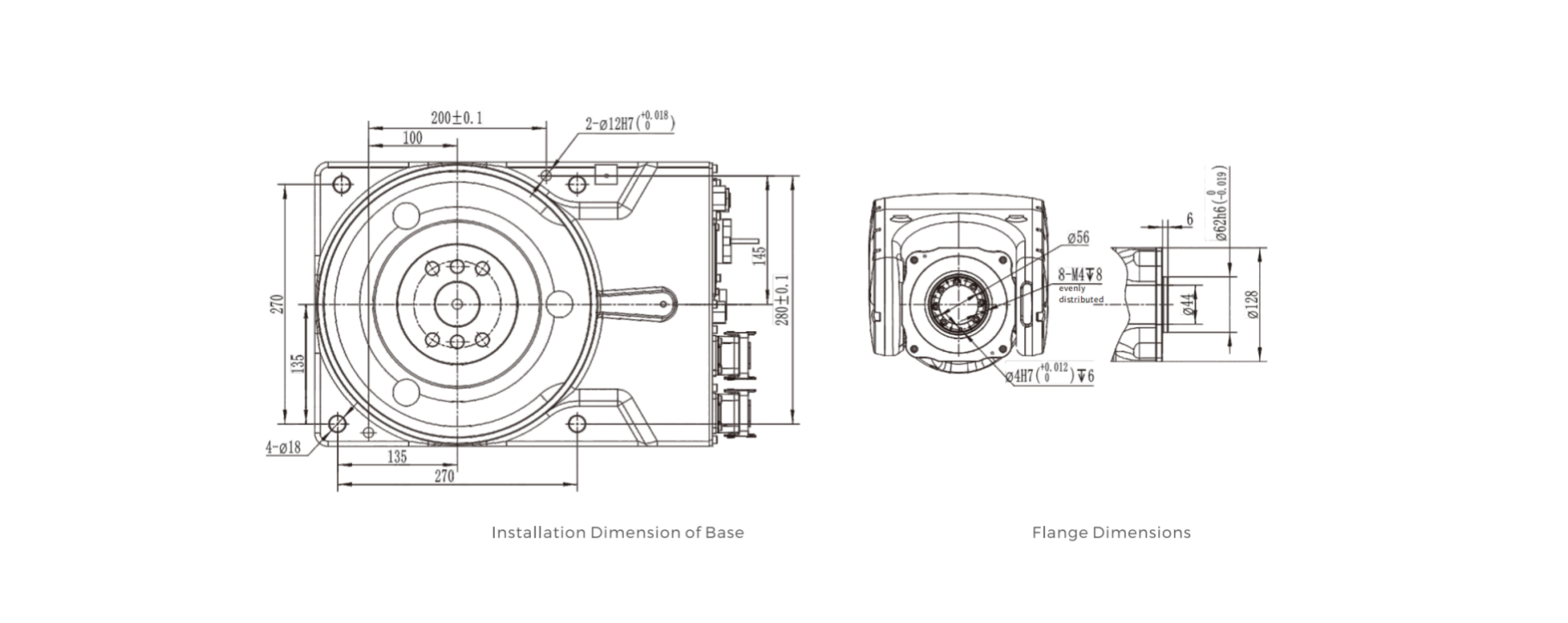

INSTALLATION INTERFACE DIAGRAM

MOTION RANGE DIAGRAM
