CRP-RH26-210
Describe
Industrial robot spot welding application
FUNCTIONAL FEATURES
  • Arm span 2.6 meters, high rigidity, strong load capacity, more stable operation.

  • Adopt a hollow arm structure and built - in wrist cable, without considering the interference caused by the external winding mode with the neighboring robot or peripheral equipment.

  • Adopt a hollow arm structure and built - in wrist cable, without considering the interference caused by the external winding mode with the neighboring robot or peripheral equipment.

  • Adopt a hollow arm structure and built - in wrist cable, without considering the interference caused by the external winding mode with the neighboring robot or peripheral equipment.

  • The robot body adopts highly flexible special cable.

  • Built - in three - phase filter can effectively improve the performance of EMC and EMI.

  • The body provides Φ12mm dual - loop gas pipes and Φ19.5mm dual - loop water pipes to meet welding and transportation requirements.

  • Using high - speed, high - overload capacity servo motor, high - precision RV reducer and the latest anti - vibration control strategy, shorten the pitch operation time, optimize the gun shaft operation sequence of the servo welding torch, and significantly shorten the cycle time.

  • The installation area of the whole machine is small, which can achieve high density installation and wiring, and multiple units work together.

  • Simple structure, friendly operation interface, easy maintenance, easy to operate.

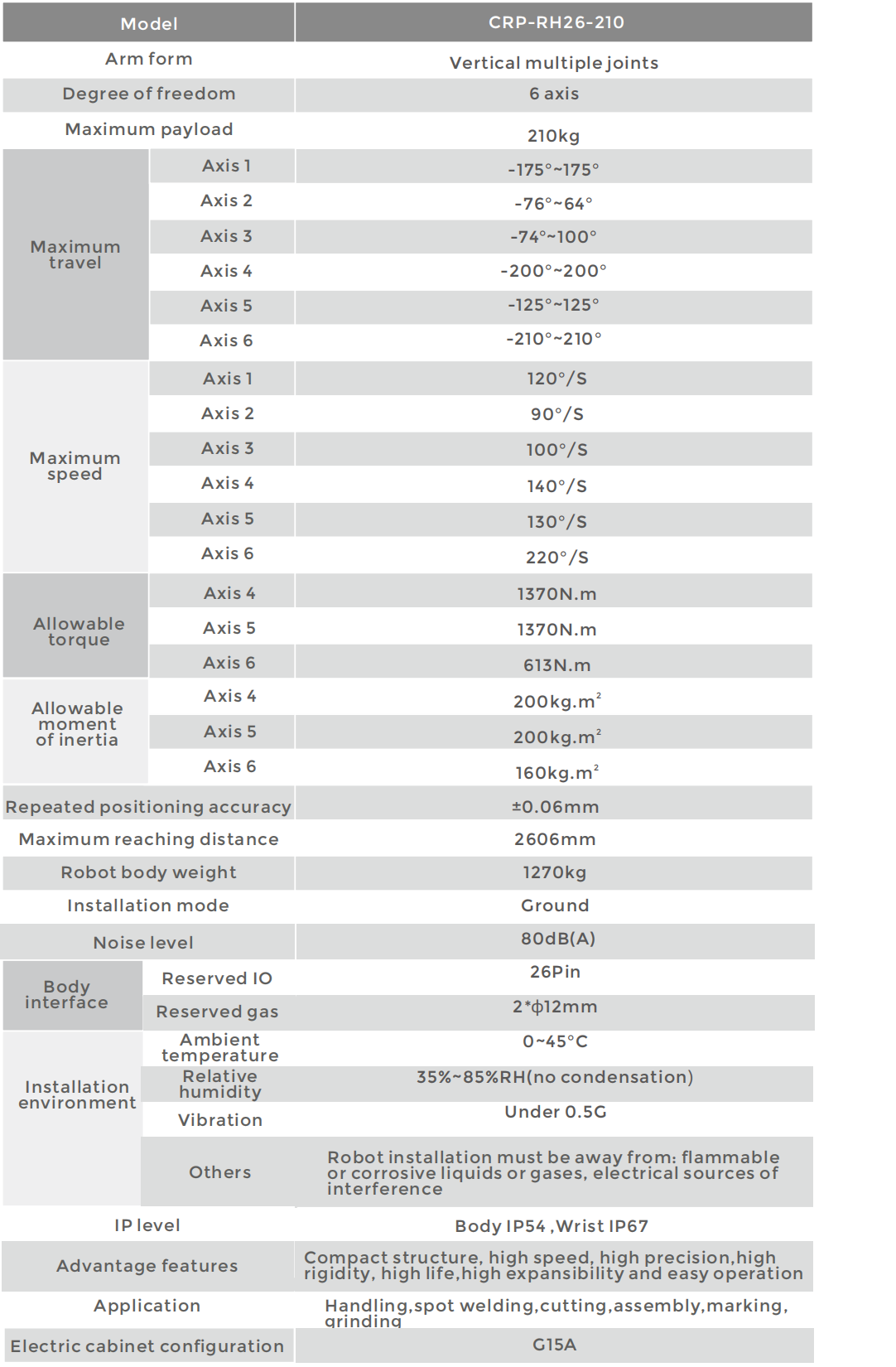

ROBOT BODY TECHNICAL PARAMETERS

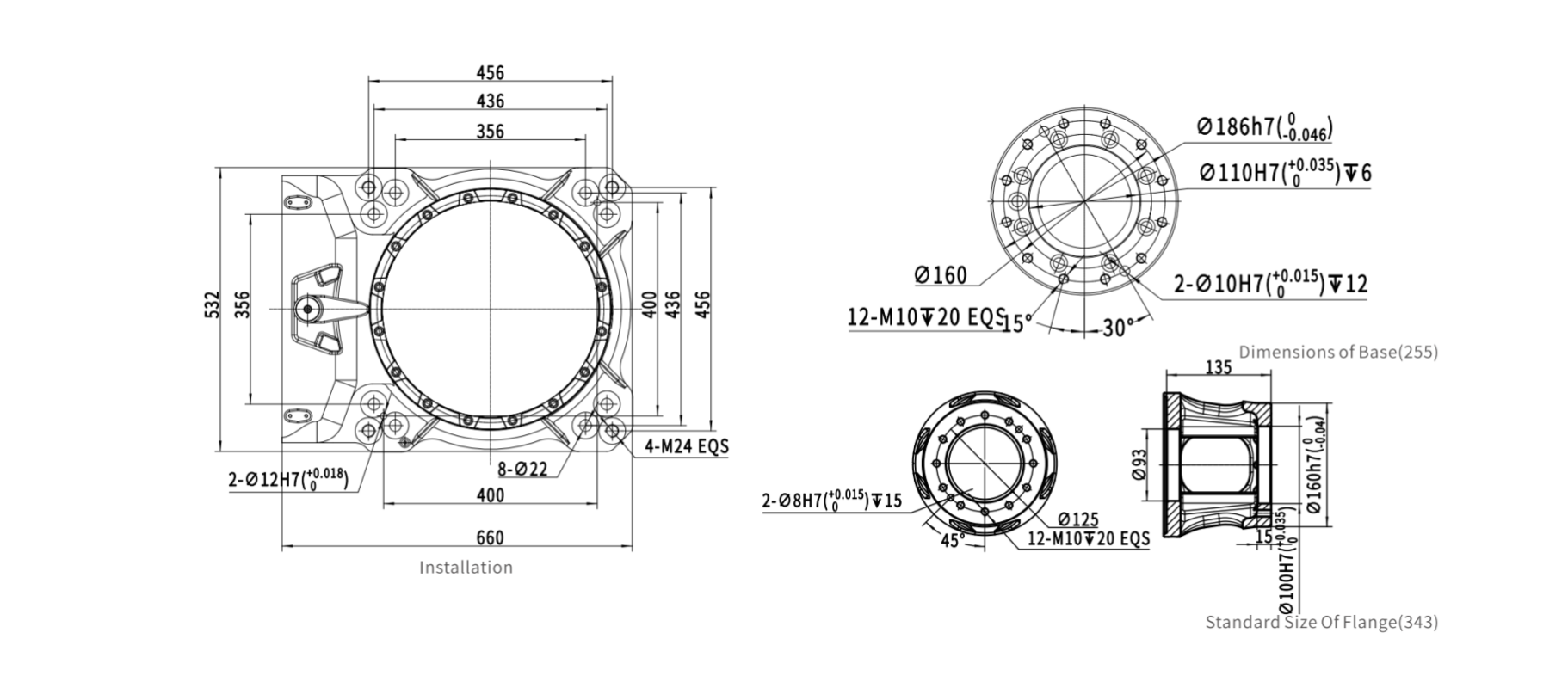

INSTALLATION INTERFACE DIAGRAM

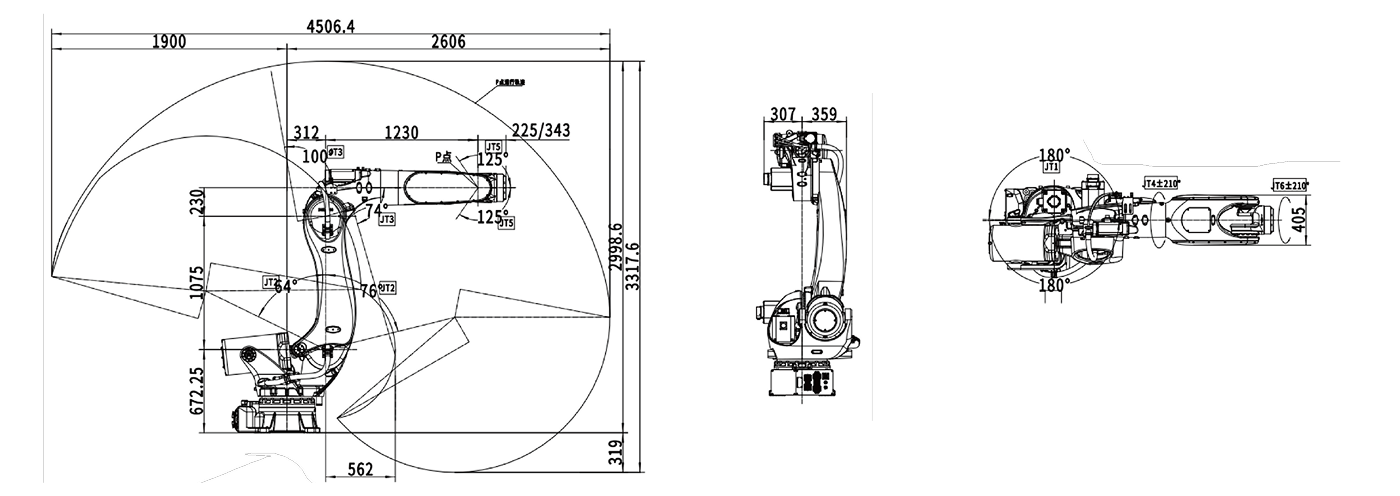

MOTION RANGE DIAGRAM
