CRP-RA28-360
Describe
FUNCTIONAL FEATURES
  • High rigidity,strong load capacity, more stable operation.

  • The body adopts the hollow arm structure and the built-in wrist cable, without considering the interference with the adjacent robot or peripheral equipment caused by the external winding mode.

  • Motor built-in, simple appearance, suitable for small space operation, more flexible movement.

  • According to the user's use scenario, provide a variety of optional configurations, can be used for spot welding, riveting, handling, grinding, assembly and other production lines.

  • The robot body cable adopts the special cable forflexible robot.

  • The robot body can be configured ф12 double circuit trachea to meet the needs of welding and handling.

  • Speed, high overload capacity servo motor, high precision RV reducer and the latest anti-vibration control strategy, shorten the pitch operation time.

  • The installation area of the whole machine is small, which can achieve high density installation and wiring, and multiple units work together.

  • The robot has simple structure,friendly operation interface, easy maintenance and easy operation.

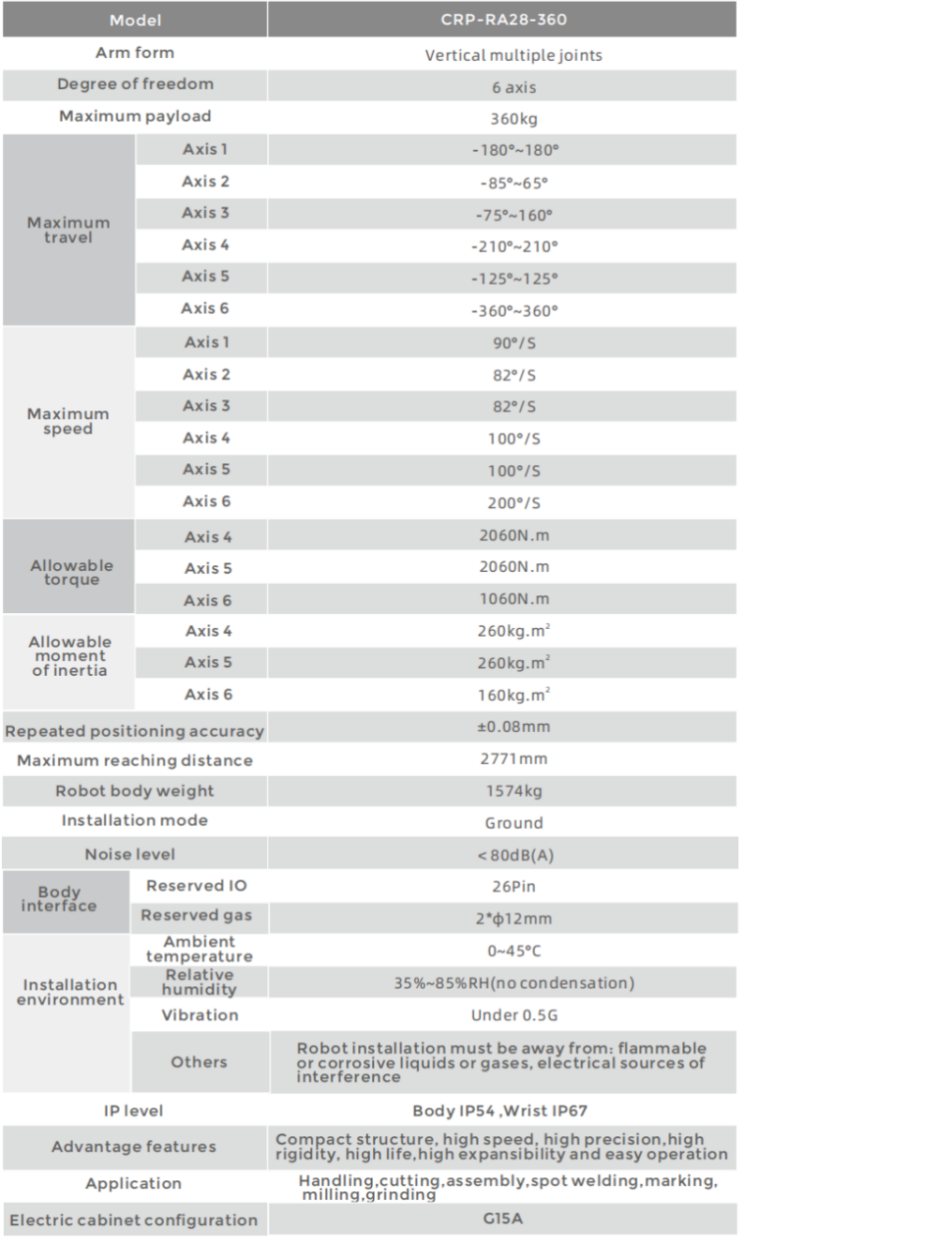

ROBOT BODY TECHNICAL PARAMETERS

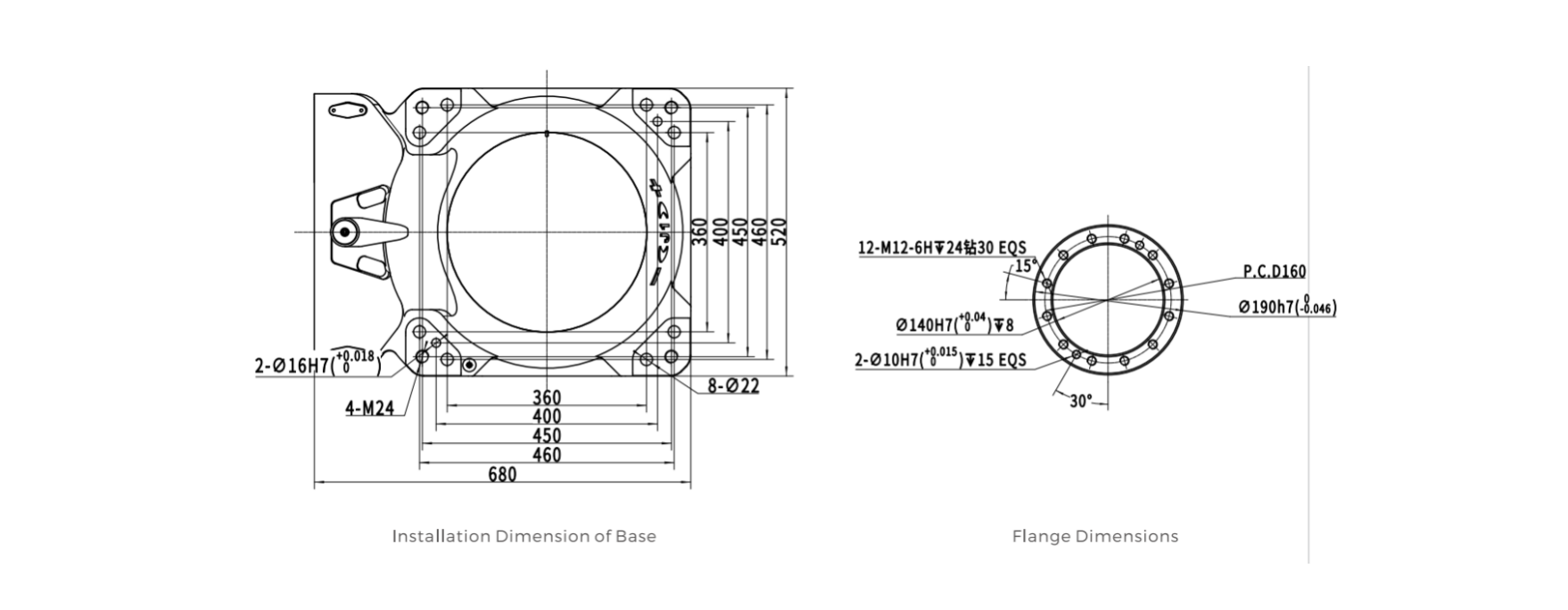

INSTALLATION INTERFACE DIAGRAM

MOTION RANGE DIAGRAM
